Checking geometry

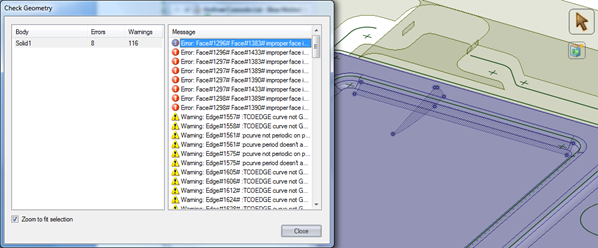

You can check the geometry for solids and surfaces. The geometry is checked for all possible ACISClosed errors. Select errors and warnings in the dialog to highlight the associated geometry in the Design windowClosed, as shown below.



To check an object's geometry

  1. Right-click a solid or surface in the Structure treeClosed.

  2. Select Check Geometry.

    You can click Stop in the status bar or press Esc to cancel the operation if necessary.

    A dialog will open that lists any errors or warnings found.

  3. Select errors and warnings in the dialog to highlight the associated geometry in the Design windowClosed.

  4. Select Zoom to fit selection to automatically zoom in to the problem area in the Design windowClosed.

  5. Click Close when you are finished.
