Scaling sketches using pull

You can scale sketch curves with the Scale tool, or you can use the PullTool used to distort or deform geometry. Use the Pull tool to offset, extrude, revolve, sweep, draft, and blend faces; or to round, chamfer, or extrude edges. When converting a sketch to 3D, pulling a line creates a surface and pulling a surface creates a solid. tool.

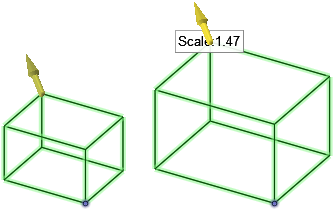

You should use the ScaleSolid or surface: Change the size of the selected object using the Pull tool. You can scale dynamically or by entering a scale value. Drawing sheet or cross-section views: Magnify or shrink the view by selecting a View in the Structure tree and editing the Properties panel. tool when you want to scale sketch curves that lie on a plane. Use the PullTool used to distort or deform geometry. Use the Pull tool to offset, extrude, revolve, sweep, draft, and blend faces; or to round, chamfer, or extrude edges. When converting a sketch to 3D, pulling a line creates a surface and pulling a surface creates a solid. tool when you want to scale curves that lie on multiple planes, as in the example below.

To scale sketch curves with the Pull tool

1. Click PullTool used to distort or deform geometry. Use the Pull tool to offset, extrude, revolve, sweep, draft, and blend faces; or to round, chamfer, or extrude edges. When converting a sketch to 3D, pulling a line creates a surface and pulling a surface creates a solid. in the Edit group on the Design2D or 3D model that contains at least one top-level component. tab.

2. Select the curves.

3. Click the ScaleSolid or surface: Change the size of the selected object using the Pull tool. You can scale dynamically or by entering a scale value. Drawing sheet or cross-section views: Magnify or shrink the view by selecting a View in the Structure tree and editing the Properties panel. tool guide.

4. Select an anchor point.

5. If BlendSmooth and tangent transition between faces or edges; created using the Pull tool. is highlighted in orange, click to turn this option off in the Options panelArea of the user interface that enables you to modify functions specific to tools..

   Scaling won't work if the BlendSmooth and tangent transition between faces or edges; created using the Pull tool. option is enabled.

6. Drag in the direction of the yellow guide arrow.
