Sheet metal tutorial

Sometimes it is easier to start with a solid and convert it to create a sheet metal part. This tutorial will guide you through the process and teach you how to use some of SpaceClaim's powerful tools to make your work easier, whether you're working with sheet metal parts or solids.

In this tutorial, you will

• Create and shell a simple solid.

• Use the selection filter and power selection.

• Add corner reliefs to a sheet metal part.

• Convert edges to sheet metal bends and junctions.

• Create rips in the part so it can be unfolded.

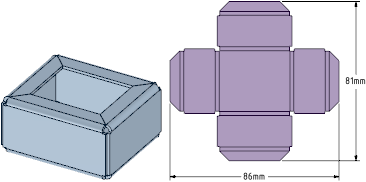

• Unfold a sheet metal part.
