Collaborating with LiveReview

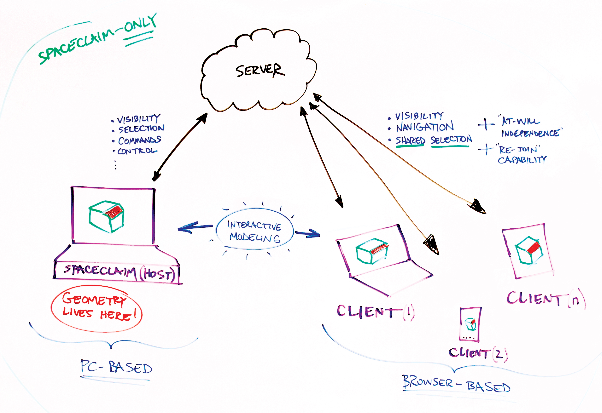

SpaceClaim LiveReview securely links a Host SpaceClaim session with other interested parties over the internet. Models opened in the Host session can be viewed, manipulated, measured, and marked-up by everyone connected.

To begin a shared session, the Host connects to the server. Secure  invitations are then sent out for Guests to connect to the server from their Client machines.

Models used in the session reside on the Host PC and are opened in the Host SpaceClaim session.

SpaceClaim LiveReview then distributes graphics information from the Host session to the Clients. In other words, each Client sees graphics from the active model in the Host ‘s SpaceClaim session.

The Host controls the session by:

• Model selection – only the Host can add models to the session
• Choosing the active model
• Inviting and Un-inviting guests
• Monitoring participant status
• When necessary, suspending client navigation for the group

SpaceClaim LiveReview provides enough graphics information for Clients to work independently with the model and perform the following actions.

• ViewOrientation settings that you can apply to your design, including spin, pan, and zoom. You can adjust these settings individually or you can apply one of the following preconfigured views: Trimetric, Isometric, Top, Bottom, Front, Back, Right, Left. You can also select Snap View and click a face to view it head-on. navigation
• Selection
• Making measurements
• Taking view Snapshots
