Splitting the design window

Use the SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. Window tool in the Window ribbon group on the Display tab to divide the workspace window into multiple windows. Splitting the window allows you to see multiple views of your design simultaneously.

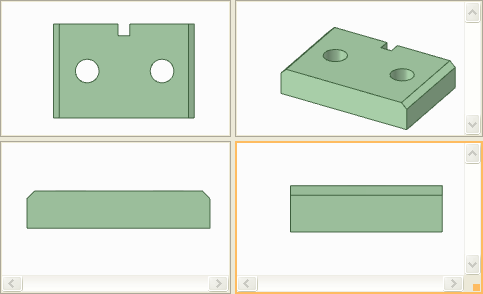

Select how you want to split the workspace window from the Split Window tool menu. The window is split based on your selection. The active window is indicated with a yellow border.
