Bad faces

The Bad Faces tool detects faces that have corrupt rendering. It detects bad edges that get flagged when faceting faces for graphics display.

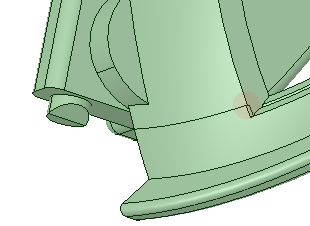

A bad face is highlighted with a red circle.

To find bad faces

1. Open the model you want to check.

2. Click Bad Faces in the Detect group of the Prepare tab.
3. Any faces with corrupt rendering are highlighted.
