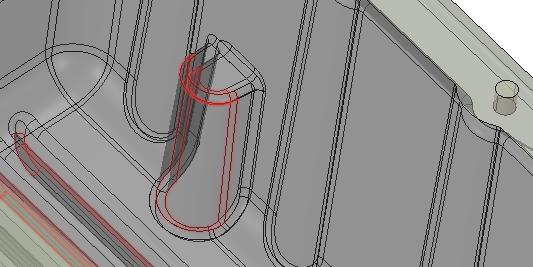

The Relax tool is used to look for surfaces that may have too many control points and reduce the number of points. Reducing the number of control points 'relaxes' the surfaces and makes them more stable.
Click Relax in the Adjust group of the Repair tab.
(Optional) Click the Select Geometry tool guide to select surfaces to relax that aren't automatically detected.
Click the Select Problem tool guide and click on a highlighted surface to relax or click the Complete tool guide to relax all highlighted surfaces.
The following tool guides help step you through the process. Use the Tab key to cycle through them. As soon as the tool guide switches, the cursor may change to reflect the active guide.
|
The Select Problem tool guide is active by default. This tool guide allows you to select problem areas that are automatically found by the tool. |
|
The Select Geometry tool guide allows you to select faces and curves that were not automatically found. Hold Ctrl to select multiple objects or box select in the design area. |
![]() |
The Exclude Problem tool guide allows you to exclude areas from selection and fixing. |
|
The Complete tool guide replaces all the highlighted surfaces with new surfaces based on the Fix Options. |
