Creating slots
Send Feedback

You can create slots from holes using the Pull tool. You can also edit slots. Slots maintain the relationship between their faces.

If you pull a hole with a rounded or chamfered edge into a slot, the slot will have a rounded or chamfered edge.

You must select the axis of the hole, rather than the axis of a round or chamfer on the hole. You will not be able to pull the slot if you select the axis of the round or chamfer.

To create a slot

  1. Click Pull in the Edit group on the Design tab.

  2. Select the axis of a hole.

    If you have trouble selecting the axis, hover first over the inside face of the hole and the axis will appear.

  3. (Optional) Hold Alt and click on a face, edge, or vertex to set the direction or trajectory of the Pull.

  4. (Optional) Select the Pull Both Sides option to create the slot in both directions.

  5. (Optional) Select Full Pull to pull the slot along the full length of the trajectory, if you selected one.

  6. Pull the axis or face of a hole to create a slot.

    If you want to pull in a new direction, press the Tab key to change the direction of the Pull handles.



ShowTo create a curved slot

  1. Select the axis or face of a hole.

  2. Select the Rotate tool guide and click the axis of the driving cylinder.

    You can also Alt+click the axis of the driving cylinder.

  3. Pull the hole to create a curved slot.

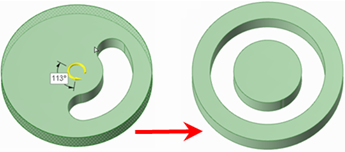

    You can pull a curved slot 360 degrees to make a round cut.

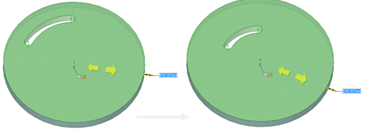

ShowTo create a radial slot

  1. Select the axis or face of a hole.

  2. Do one of the following:

    • Alt-click the face of the driving cylinder to set the direction of the Pull towards the axis of the driving cylinder. Click the Pull Direction tool guide and pull the hole to create a radial slot.

    • Ctrl-click the face of the driving cylinder to set the direction of the Pull towards the axis of the driving cylinder. Click the Pull Direction tool guide and pull the hole to offset the cylinder and create a radial slot simultaneously.

    • Select the Pull arrow that points toward the axis and pull.

    If you want to lengthen a radial slot while keeping it the same distance from a radial face, Ctrl+click the radial slot's axis and the face, then pull.

    If you want to move a slot along with a radial face Ctrl+select the hole’s axis and the face, then Ctrl+pull.

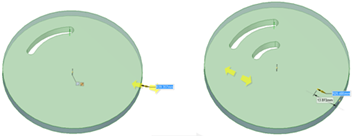

ShowTo create an offset of a radial slot

  1. Select an axis of a slot.

  2. Hold the Alt key and select the cylinder face or face to set the offset direction.

  3. Hold the Ctrl key and pull or enter a radius value.

ShowTo create a swept slot

  1. Select the axis of a hole.

  2. Select the Sweep tool guide.

  3. Click the sweep trajectory.

    A sweep mode arrow indicates the beginning of the sweep.

  4. Click and drag in the direction of the Pull arrow to sweep the selected objects.

    You can also select Full Pull from the Options panel or the mini-toolbar to sweep the entire length of the trajectory. If you select Full Pull and the face or surface being swept is in the middle of the trajectory, it will be swept in both directions.

ShowTo edit a slot

You can modify a hole that was dragged to form a slot by pulling on any of the slot axes.

If the slot has a rounded or chamfered edge, double-click the round or chamfer to change its dimensions.

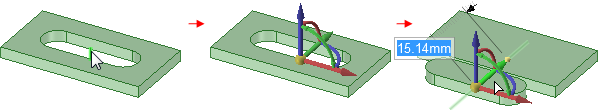

If you select Detach first in the Options panel, then the slot will become a solid if you use the Move tool to move it off the body, as shown below.

ShowTo move a slot radially

  1. Select the Pull tool.

  2. Select both axes of the slot.

  3. Do one of the following:

    • Alt-click the face of the driving cylinder to set the direction of the Pull towards the axis of the driving cylinder. Click the Pull Direction tool guide and Ctrl-drag to move the slot radially.

    • Ctrl-click the face of the driving cylinder to set the direction of the Pull towards the axis of the driving cylinder. Click the Pull Direction tool guide and Ctrl-drag to offset the cylinder and move the slot.

    You can also move a hole radially by pressing Shift while dragging it with the Pull tool.

ShowTo remove the slot relationship

Right-click a face of the slot and select Remove Association.

Any changes you make to the slot's face will affect only that face.

Examples



Pulling mirrored holes to create slots

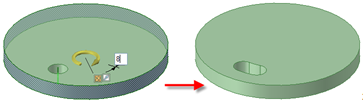

Creating a circular slot by entering an angle dimension with the Pull Both Sides option

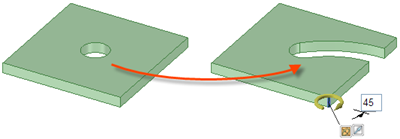

Creating a radial slot by selecting an axis or edge parallel to the hole’s axis as the Pull direction

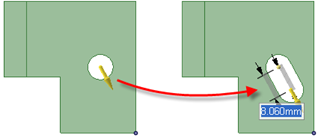

Creating a slot using a vertex as the Pull direction
