You can extend or extrude the edges of any surface with the Pull tool. When you extend an edge, the pull extends the neighboring faces without creating a new edge. Extruding an edge creates edges.
Click Pull in the Edit group on the Design tab. The Select tool guide on the right side of the Design window should be active.
Select the outside edge of a surface.
Ctrl+click to select multiple edges.
Click the Pull arrow oriented along the surface to extend the edge. Press Tab or click the other Pull arrow to extrude the edge in another direction.
(Optional) Ctrl+click the vertex of one or both neighboring edges to ignore their influence.
Drag in the direction of the Pull arrow to extend the edge or create a new surface perpendicular to the old one.
If the correct pull arrow is not highlighted, press Tab or click the Pull arrow you want to use.
The natural direction of a surface edge is in the plane of the surface.
You can use the Up To tool guide to pull a linear edge up to a face, surface, edge, or point. If the face or surface does not intersect the edge you are pulling, the edge will be pulled parallel to the selected object.
To dimension the extension, type the distance you want to extend the surface while you are pulling and press Enter.
The following options are available in the Pull tool. Once you select the edge or face to pull, select these options from the Options panel, or right-click and select them from the mini-toolbar:
Add |
Select the Add option to only add material. If you pull in a subtractive direction, no change will occur. You can combine this option with other Pull options. |
Cut |
Select the Cut option to only remove material. If you pull in an additive direction, no change will occur. You can combine this option with other Pull options. |
No Merge |
Pulls without merging into other objects even when the object pulled intersects with an existing object. |
Full Pull |
Extends an edge or face to the nearest face. This option works similar to the Up To tool guide, except you don't select the face to extend to. If used to revolve or sweep, click this option to revolve 360 degrees or to the next face, sweep through the full trajectory, or blend through selected faces. |
Pull Both Sides |
Select a single, detached edge, imprinted edge, or surface, then click this option to pull both sides of the edge or surface at once. |
Ruler |
Select this option, then click to connect a ruler, oriented along the pull axis, to an anchor edge or face. You can use the ruler to dimension the pull. The direction must be specified to successfully create a ruler dimension. Press Esc to cancel the ruler dimension. |
Up to |
Pulls the element so it mates with the surface of the selected body or be pulled up to a plane through the selection. You can find this option in the mini-toolbar and it is the same as the Up To tool guide. |
When you are pulling an edge, select this option to extrude the edge into a surface. |
|
Copy Edge |
When you are pulling an edge, select this option to create a copy of the edge. |
Pivot Edge |
When you are pulling an edge, select this option to pivot the edge along the selected Pull arrow. |
Pulling the edge of a surface up to another edge forms a solid if it closes the body

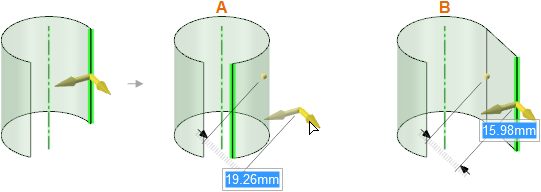

Pulling the edge of a cylindrical surface extends the surface along a cylindrical path (A) unless you hold Ctrl (B).

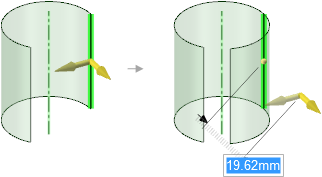

Pulling the edge of a cylindrical surface with the No Merge option selected creates a new edge.

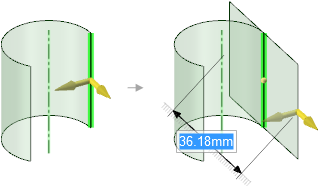

Pulling the edge of a cylindrical surface with the Both Sides option and holding Ctrl creates a new surface tangent to the cylinder and extends in both directions from the edge.

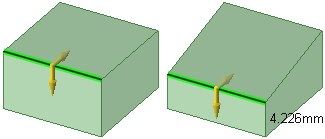

Pulling an edge with the Pivot Edge option

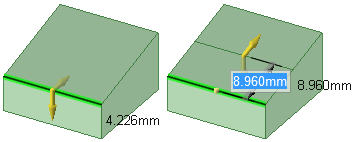

Pulling an edge with the Copy Edge option
