Rounding between faces and surfaces

You can create a rounded edge across the gap between two faces or surfaces that would meet at a corner. To create a rounded face on an edge, see Rounding edges.

When you round between faces of two solids, the solids must extend into the area where the rounded face is created.

To round between faces or surfaces

1. Click PullTool used to distort or deform geometry. Use the Pull tool to offset, extrude, revolve, sweep, draft, and blend faces; or to round, chamfer, or extrude edges. When converting a sketch to 3D, pulling a line creates a surface and pulling a surface creates a solid. in the Edit group on the Design2D or 3D model that contains at least one top-level component. tab.

2. Select the faces you want to create a round between.

3. Select the RoundRounded corner at the intersection of two lines or edges. Round refers to an exterior corner; an interior corner is known as a fillet. Rounds and fillets are both called rounds. See Fillet, Constant-radius round, Variable-radius round. option in the Options panelArea of the user interface that enables you to modify functions specific to tools..

   The pull arrow changes to indicate that a round will be created between the faces and a curve is displayed to show you the direction of the round. Yellow cursor arrows show you the directions you can pull to create the round if you have cursor arrows enabled.

4. Press Tab to cycle through all of the possible rounds that can be created between two faces or surfaces.

   If the two faces you are rounding between are rounds, then Tab lets you choose either rounding between or changing the radius of both existing rounds.

5. Click and drag in the direction of the PullTool used to distort or deform geometry. Use the Pull tool to offset, extrude, revolve, sweep, draft, and blend faces; or to round, chamfer, or extrude edges. When converting a sketch to 3D, pulling a line creates a surface and pulling a surface creates a solid. arrow.

   To dimension the round, press the Spacebar, type the radius, and press Enter.

   When you pull an edge to create a round, the PullTool used to distort or deform geometry. Use the Pull tool to offset, extrude, revolve, sweep, draft, and blend faces; or to round, chamfer, or extrude edges. When converting a sketch to 3D, pulling a line creates a surface and pulling a surface creates a solid. tool determines whether it should be a constant radius or a variable radius round based on the geometry.

   Once you create a round, pulling an adjacent face also pulls the round.

   When you round more than one edge at the same time, and one or more of the rounds cannot be created, only the successful rounds are created.

   When pulling FaceSide or other surface of a solid. Some examples are the inside surface of a hole or the six sides of a rectangular solid. See Surface.-to-FaceSide or other surface of a solid. Some examples are the inside surface of a hole or the six sides of a rectangular solid. See Surface. round,s you can match their radius to an existing round using the Up To tool guide.

Unlike rounds made on edges, the faces hidden by the round are not remembered. If you fill the round it will be replaced by an edge.

Examples

Rounding between faces on two parts. MaterialProperty that you can assign to an object, consisting of material name and attributes such as density and tensile strength. exists in the area where the rounded face is created, so this operation will succeed.

A rounded face cannot be created between these faces because material doesn't exist in the area between the parts where the round will be created.

This sequence shows creating a round between faces, then using the FillUse the Fill tool to simplify or clean up geometry by extending surrounding faces to eliminate a selection. The selected region is filled in or healed with the surrounding surface or solid. tool to remove the round. The FillUse the Fill tool to simplify or clean up geometry by extending surrounding faces to eliminate a selection. The selected region is filled in or healed with the surrounding surface or solid. replaces the round with an edge and not with the original geometry.

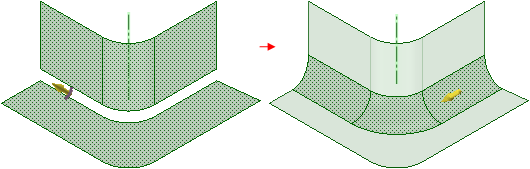

Rounding between two surfaces creates a rounded surface.
