1. Click SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. in the IntersectA tool used to split solids and faces. group on the Design2D or 3D model that contains at least one top-level component. tab.

2. Click on the face to be split.

3. Click the Select Cutter FaceSide or other surface of a solid. Some examples are the inside surface of a hole or the six sides of a rectangular solid. See Surface. tool guide.

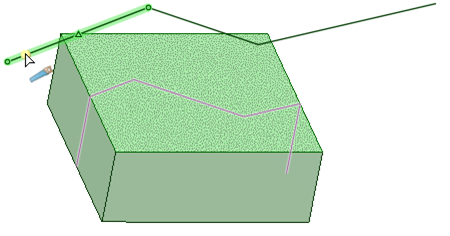

4. Mouse over the faces and planes in your design to preview the edge that will be created on the target. You can also select a patterns of planes in the structure tree to split the face. When selecting patterns of planes as a cutter, you can also use Shift-Select to select specific planes within the pattern.

5. Click the face, plane, or patterns of planes to split the selected face with an edge.

Surfaces are parameterized using two variables labeled U and V. The location of each point on a surface can be described with coordinates (u, v). With the Select UV Cutter PointSingle location in the sketch grid. 2-D object that has no height, width, or length. The origin, an axis, and a vertex are examples of points. Use the Point tool to sketch a point on the sketch grid. Points are useful as a dimensional reference, for splitting, and for creating a point on a line or curve through which you want to draw a three-point circle. tool guide, you select a UV point on the surface or one of it's edges.



1. Click SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. in the IntersectA tool used to split solids and faces. group on the Design2D or 3D model that contains at least one top-level component. tab.

2. Click the Select UV Cutter PointSingle location in the sketch grid. 2-D object that has no height, width, or length. The origin, an axis, and a vertex are examples of points. Use the Point tool to sketch a point on the sketch grid. Points are useful as a dimensional reference, for splitting, and for creating a point on a line or curve through which you want to draw a three-point circle. tool guide.

3. Mouse over a surface or it's edges to preview the split edges that will be created.

4. Click a point on the surface or edge to split the selected face.

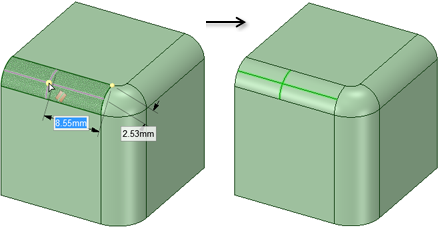

Clicking a UV point on a surface splits it into four pieces.

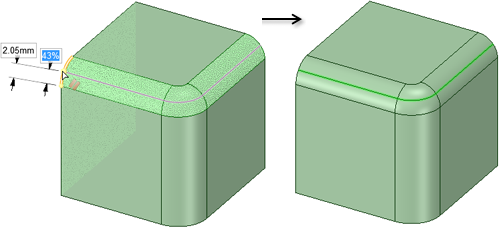

Clicking a UV point on an edge splits it into two pieces, along a constant U or V coordinate.   For a chain of tangent faces, the split propagates across all tangent faces at the constant U or V coordinate.



1. Click SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. in the IntersectA tool used to split solids and faces. group on the Design2D or 3D model that contains at least one top-level component. tab.

2. Click the Select Two Cutter Points tool guide.

3. Click a point on an edge.

4. Mouse over the face or edges to preview the edges that will be created.

5. Click a point on another edge or on the face to split the selected face.

Examples



Previewing edges that can be created using the Select Cutter PointSingle location in the sketch grid. 2-D object that has no height, width, or length. The origin, an axis, and a vertex are examples of points. Use the Point tool to sketch a point on the sketch grid. Points are useful as a dimensional reference, for splitting, and for creating a point on a line or curve through which you want to draw a three-point circle. and Select Two Cutter Points tool guides





Splitting a face in section mode by selecting points on a section line





Splitting multiple faces with the Select Two Cutter Points tool guide

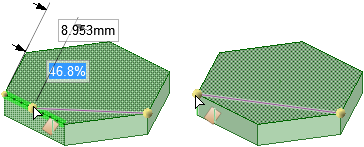

1. Click SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. in the IntersectA tool used to split solids and faces. group on the Design2D or 3D model that contains at least one top-level component. tab.

2. Click the Select Perpendicular Cutter PointSingle location in the sketch grid. 2-D object that has no height, width, or length. The origin, an axis, and a vertex are examples of points. Use the Point tool to sketch a point on the sketch grid. Points are useful as a dimensional reference, for splitting, and for creating a point on a line or curve through which you want to draw a three-point circle. tool guide.

3. Click a point on an edge.

4. Mouse over edges of the face to preview the edges that will be created.

5. The distance and percentage along the edge is displayed. You can Press the Space bar and Tab key to change these values.

1. Click SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. in the IntersectA tool used to split solids and faces. group on the Design2D or 3D model that contains at least one top-level component. tab.

2. Click the Select TargetThe object you want to cut, when using the Combine tool to split a solid or surface. tool guide.

3. Select the periodic face you want to split.

4. Click on the point of the face where you want it split, as shown below.



5. The Select Results tool guide is now active, so you can click edges that you don't want to keep, as shown on the left of the image below. The result after the two straight edges have been removed is shown on the right.



1. Click SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. in the IntersectA tool used to split solids and faces. group on the Design2D or 3D model that contains at least one top-level component. tab.

2. Click the SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. Edge3D object composed of a single outside boundary of a feature. A line sketched in 2D becomes an edge when you pull your sketch into 3D. tool guide.

3. Select the edge, curve, or beam you want to split.

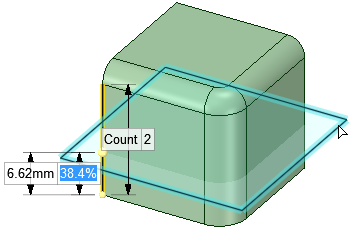

4. The edge highlights and the split is previewed with dimensions (length and percent) and a count. The count is the number of pieces the edge will be split into. The default count is two.

5. Click the point where you want to split, as shown below (left image) or select a plane (right image).

6. The Select Results tool guide is now active, so you can click edges that you don't want to keep, as shown on the left of the image below. The result after the two straight edges have been removed is shown on the right.
