Note Leader Examples

A virtual sharp

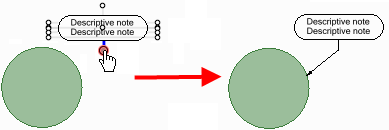

Attaching to the bottom connection point of a note to create a leader with a jog or shoulder.

Attaching to the center connection point of a note to create a straight leader.

Use the center connection point to create circle flag notes or BOM balloon notes according to the JIS standard, without a jog or shoulder.
