Analyzing faceted bodies



The Analyze group contains tools for checking the thickness of a faceted body and checking for overhangs. Thickness and the presence of overhangs are things that need to be considered for 3D printing.



Use the Thickness tool to check the minimum thickness of a faceted body.

Use the Overhangs tool to detect and highlight areas of the faceted body that protrude out at angles up to 90°

Thickness Tool:

Thickness is important for planning 3D printing. The Thickness tool lets you measure the thickness based on facet normals or relative to the printer vertical direction.

To check faceted body thickness:

  1. Click the Thickness tool
  2. Enter a Minimum thickness in the Options panelClosed or use the default value.

    You can also click the arrow to open a slider for setting the Minimum thickness. The Thickness display changes dynamical as you drag the slider.

  3. (Optional) Click the 3D Printing Direction tool guide and select an edge or axis parallel to the printer vertical direction.
  4. Select a faceted body.

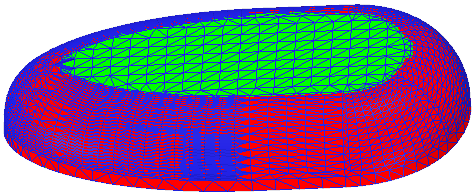

The results are shown shaded with areas that are less than the Minimum thickness shown in red. An example is shown below.



Tool guides

The following tool guides help step you through the process. Use the Tab key to cycle through them. As soon as the tool guide switches, the cursor may change to reflect the active guide.



The Select Faceted BodyClosed tool guide is active by default. Use it to select a faceted body to analyze.

Use the 3D Printing Direction tool guide to select a line, edge, or axis for the 3D printing direction.

Options

The following options are available for detecting minimum thickness:

Minimum thickness

Enter a value in model units. Any areas that have a thickness Less Than the minimum thickness will be detected and highlighted.



Overhangs Tool:

Overhanging geometry is an important consideration in 3D printing because it may require special supports. This can add cost and setup time to the process.

The Overhangs tool detects and highlights areas of the mesh that protrude out at angles up to 90°. You can set the Overhang Angle option to look for any angle up to 90°.

To check a faceted body for overhangs:

  1. Click the Overhangs tool
  2. Enter a Overhang Angle in the Options panel or use the default value.
  3. Select a faceted body.
  4. Faces that overhang by More Than the Overhang Angle are highlighted.

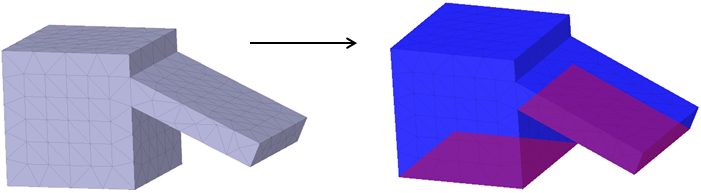

In the example below, the overhang is at 65°. The Overhang Angle is set to 64°.





Options

The following options are available for detecting overhangs:

Overhang Angle

Enter a value in degrees. Faces that overhang by More Than the specified angle will be detected and highlighted.
