Adding Tracelines

  1. Click Traceline in the Configurations section of the Assembly tab.

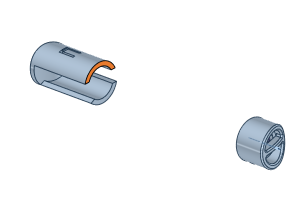

  2. Use Select 1st reference face to select the reference face to start the traceline.

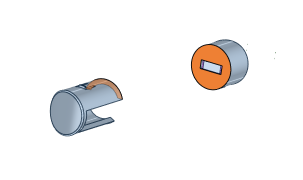

  3. Use Select 2nd reference face to select the reference face to end the traceline.
  4. Click Complete . Traceline is drawn between the two closest points of the two selected faces.
    Note: To delete a traceline, click it and click Delete.
