Drafting Faces Examples

Drafting a face about a round.

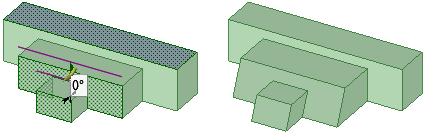

Drafting non-contiguous faces.

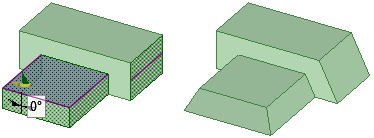

Drafting around a plane that does not touch the faces being drafted.

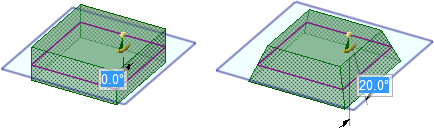

Drafting faces around a plane. The drafted faces pivot around the face or plane you select as the draft plane.

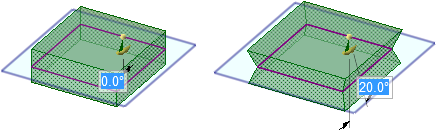

Drafting both sides around the plane.

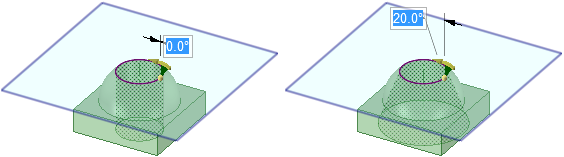

Drafting a face where a plane must be selected as the draft plane. See Inserting a plane for instructions to create a plane.

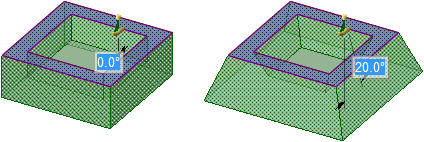

Drafting the offset faces (inside and the outside) of a shelled solid.

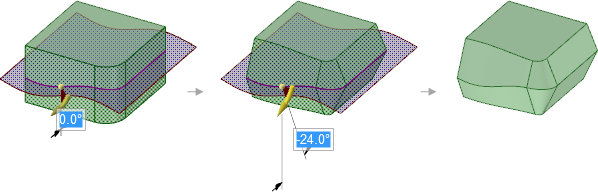

Drafting around a spline surface with the Draft both sides option selected

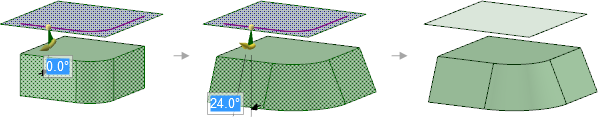

Drafting a set of surfaces about a planar surface not attached to the solid
