Junction Tool Examples

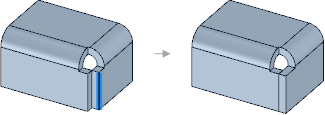

Selecting an edge to change an S Bend junction to a No Overlap junction

Selecting the edge of a corner junction to change the junction type from No Overlap to Full Overlap

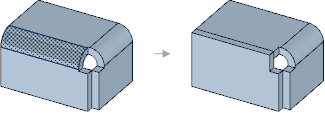

Changing a Bend to a Full Overlap junction

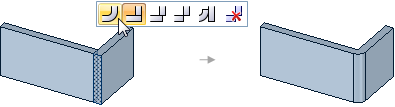

Using the junction mini-toolbar to change a junction type when Select and Pull tools are active
