Identify Tool Examples

Automatically identifying forms.

Automatically identifying a hem.

Selecting two bends to identify a joggle.

Selecting the front faces and back faces to identify a bead.

Selecting the thickness edges to identify a notch.

Automatically identifying gussets.

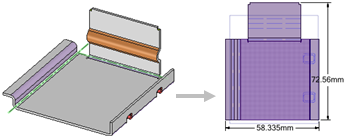

Unfolding a sheet metal design after identifying the geometry.
