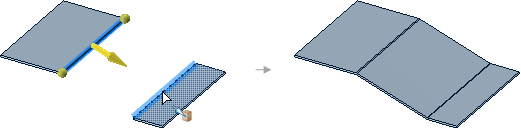

Pulling a Wall Between Two Parallel Walls

  1. Click Pull in the Create group in the Sheet Metal tab.
  2. Select an edge on the first wall.
  3. Click the Up To tool guide or press U.
  4. Select an edge on the second wall.The Pull handle previews the direction of the pull direction when you move your mouse over an edge.Bends are automatically added as needed.
