Using the Share Topology Tool

1. Click the Share tool . Sharing candidates are highlighted in red.
2. (Optional) Enter a new Coincidence tolerance in the Options panel.
3. Using the Select tool guide, click individual candidates to share them.
4. Click the Exclude Problem tool guide and click individual candidates to exclude them.
5. Click the Complete tool guide to apply sharing to all remaining candidates.

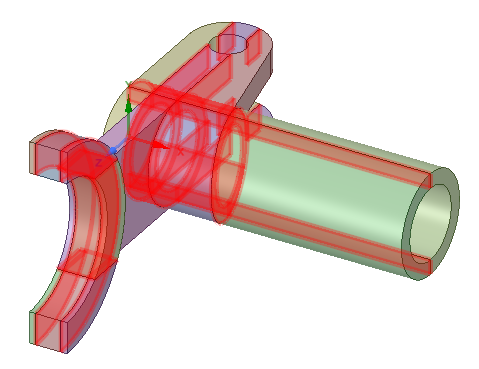

The Share tool automatically finds sharing candidates and highlights them in red.
Using the Exclude Problem tool guide, candidates in one area of the model are selected for exclusion. These candidates are now highlighted in green to indicate they are excluded.
Click the Complete tool guide to share all remaining candidates.
