Spot welds tutorial



This tutorial will teach you how to define spot welds on a part and analyze them in ANSYS Mechanical.

Step 1: Open the document

  1. Click on the following link and save the file on your computer:

    spotweld.scdoc.



    If you are using the online version of the help, the model will be downloaded as a zip file. You need to save it to your disk and change the file extension from ".zip" to ".scdoc"

  2. Open the document in Discovery SpaceClaim.

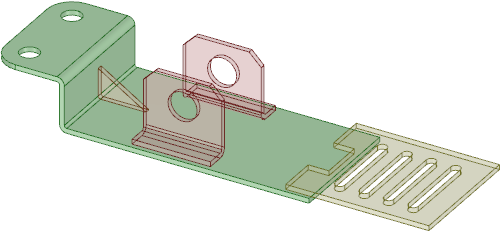

    The design looks like this:
