Spot weld options control how the spot welds are applied in relation to the guiding edge. The values are displayed in the Options panelArea of the user interface that enables you to modify functions specific to tools. when the Spot Weld tool is active and in the Design windowArea in the user interface that displays your model or assembly. Also known as Workspace. when you select a weld joint. You can change the values in the Options panel or in the Design2D or 3D model that contains at least one top-level component. window by tabbing between the boxes.

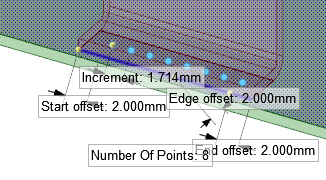

The Options panel looks like this:

Change spot weld options

Change the Start offset, Edge3D object composed of a single outside boundary of a feature. A line sketched in 2D becomes an edge when you pull your sketch into 3D. offset, and End offset to 2.

The placement of the spot welds changes accordingly.
