Scaling solids and surfaces



You can scale solids and surfaces with the PullClosed tool. You can scale multiple objects in different components.

To scale a solid, surface, or mesh

  1. Click PullClosed in the Edit group on the DesignClosed tab.

  2. Select a solid, surface, or mesh (meshes also have a ScaleClosed tool in the Facets tab).

  3. Click the ScaleClosed BodyClosed tool guide.

  4. Click a point, vertex, or origin to set the origin for scaling.

  5. PullClosed to scale dynamically (a field appears to show the scale as you pull) or press the spacebar and enter the scale.

    You can enter mathematical expressions to calculate a scale factor.

    To scale using an annotation dimension, click the spark icon next to the dimension and type a new value.

Select the solid or surface, Alt+click a vertex to anchor the scale, and pull.

To scale a solid asymmetrically

  1. Click PullClosed in the Edit group on the DesignClosed tab.

  2. Select a solid body (Meshes can be scaled asymmetrically using the ScaleClosed tool in the Facets tab).

  3. Click the ScaleClosed BodyClosed tool guide.

  4. Click a point, vertex, or origin to set the origin for scaling.

  5. Hold Alt and select an origin axis, or hold Alt and Ctrl and select a point and a line.
  6. Drag in either direction of the line to scale the part in that direction.

    You can press the Spacebar and enter a scale value while you are dragging.

To convert an existing solid or surface from millimeters to inches

  1. Change the units to inches as described above.

  2. Select the PullClosed tool in the Edit ribbon group on the DesignClosed tab.

  3. Select the object you want to convert.

  4. ScaleClosed the object by 25.4.

To scale a datum plane or axis

  1. Click PullClosed in the Edit group on the DesignClosed tab.

  2. Select the datum plane and/or axis and select a curve, surface, or solid.

    You must hold Ctrl and select the plane. Box-select will not select it.

  3. Click the ScaleClosed BodyClosed tool guide.

  4. Select an anchor point.

  5. Drag in the direction of the PullClosed arrow.

Examples

Scaling a solid asymmetrically

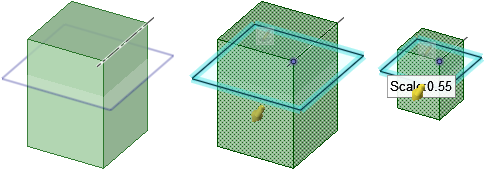

Scaling a plane and an axis with a solid





You can use annotation dimensions to scale an object. See Editing with annotation dimensions.
