Sketch grid styles

You can modify whether the sketch grid is displayed, and how the geometry above or below the grid is displayed in each Design windowArea in the user interface that displays your model or assembly. Also known as Workspace.. You may want to use one style when you are examining a component, and another when you are creating new geometry within a component. You can further customize the sketch grid by hiding section lines and faces using DS Mechanical options.

To show or hide the sketch grid

Check the Show Sketch GridSee Sketch grid box in the GridSee Sketch grid ribbon group on the Display tab to display the sketch grid. The sketch grid appears in all the sketching tools. Displaying the sketch grid allows you to snap to grid lines and provides a visual cue to the orientation of your sketch within your design

To determine how geometry above or below the grid is displayed

• Check the Fade Scene Under GridSee Sketch grid box to make the geometry under the sketch grid more transparent.

  Sketch curves outside the current sketch plane appear faded, while layout curves are unaffected.

• Check the ClipHide all geometry in a design above or below the grid or selected plane. Scene Above GridSee Sketch grid box to hide the geometry above the sketch grid.

To clip your design with a plane

Right-click a plane and select Clip with Plane. To restore the view of your design, right-click the plane and select ClipHide all geometry in a design above or below the grid or selected plane. with PlaneConstruction geometry consisting of a flat surface. Planes can be used for a 2D sketch, section view of a model, a neutral plane in a draft feature. again.

Planes, axes, and annotations are not clipped.

Examples

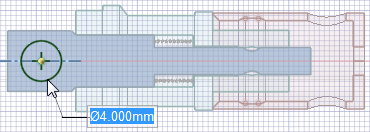

Fading the scene below the grid makes it easier to see when you sketch in section mode.

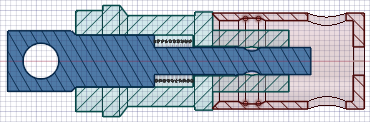

Examining a section with the scene clipped above the grid
