Scaling a sketch

Use the ScaleSolidObject that encloses volume. A surface becomes a solid if it encloses volume. or surface: Change the size of the selected object using the PullTool used to distort or deform geometry. Use the Pull tool to offset, extrude, revolve, sweep, draft, and blend faces; or to round, chamfer, or extrude edges. When converting a sketch to 3D, pulling a line creates a surface and pulling a surface creates a solid. tool. You can scale dynamically or by entering a scale value. Drawing sheet or cross-section views: Magnify or shrink the view by selecting a ViewOrientation settings that you can apply to your design, including spin, pan, and zoom. You can adjust these settings individually or you can apply one of the following preconfigured views: Trimetric, Isometric, Top, Bottom, Front, Back, Right, Left. You can also select Snap View and click a face to view it head-on. in the Structure tree and editing the Properties panel. tool to display control handles that you can use to manipulate a 2D object. The Scale tool also works in Section modeSee SectionDesign2D or 3D model that contains at least one top-level component. mode in which you edit solids by working with their edges and vertices in cross-section. View is cut away to show interior detail. on solids with only planar faces.

The Scale tool works for sketches that lie on a plane. If you need to scale sketches that lie on multiple planes, see Scaling sketches with Pull.

To scale, rotate, or pan an object

1. Click Scale in the Sketch group on the Design tab.

2. Select a drawing or clipping plane.

3. Select any 2D object (including arcs and splines) or 3D edge.

   You can hold Ctrl or draw a box in the Design windowArea in the user interface that displays your model or assembly. Also known as Workspace. to select multiple objects.

   You can select individual spline points to change part of a spline curve.

4. Scale, rotate, or pan the object by doing the following:

   • Scale: Drag the white control handle. You can press Shift while dragging to lock the aspect ratio. You can also enter a dimension, including a percentage (such as 50%).

   • RotateDesign: Using the Rotate tool to spin a design 90 degrees in the plane of the screen. You can rotate your design clockwise or counterclockwise. Object: Using the MoveA tool used to translate or rotate geometry. handle to spin an object around an axis.: Drag the green control handle.

   • Change the center of rotation and scaling: Drag the pink circle.

   • PanMove a drawing around by dragging the drawing area around your screen; move the viewpoint laterally relative to the drawing.: Move the mouse over the dashed border so it changes to a solid line then drag the boxed object(s).

Options

The following option is available in the Scale tool:

The following options are available for every sketch tool:

• Cartesian dimensions: Select a point in a sketch and then click this option to see Cartesian dimensions from the point. Cartesian dimensions show you the X and Y distances from the point you select. If you don't have a point selected, it shows you the X and Y distances from the origin.

• Polar dimensions: Select a point in a sketch and then click this option to see Polar dimensions from the point. Polar dimensions show you an angle and a distance from the point you select. If you don't have a point selected, it shows you the angle and distance from the origin.

• SnapConstrain to objects, angular and linear increments, or grid points while you are sketching or editing solids. You can customize the snapping behavior in File>Options. Pressing Shift while dragging snaps the tool based on your snap settings. You can use the Snap to grid tool to constrain or lock all drawing to grid points only. to grid: Select this option turn snapping on or off while sketching. The cursor will snap to the minor grid spacing increment while you sketch. The defaults are 1mm for Metric and 0.125in for Imperial units. See Units options to change the minor grid spacing.

• Snap to angle: Select this option to turn angle snapping on or off while sketching. The cursor will snap to the angular snap increment while you sketch. The default is 15 degrees. See Snap options to change the angular increment used for snapping.

• Create layout curves: The sketch curves are created as layout curves. If you move the design to a drawing sheet, with Sketch modeModeThree ways of designing: Sketch, Cross-section, or 3D. You can switch between modes at any time. for drawing in two dimensions using the sketching tools on the sketch grid. A sketch is a collection of lines and other 2D objects on a sketch grid. Sketching creates regions that can be pulled into 3D. When you pull your sketch into 3D with the Pull tool, regions formed by intersecting lines will become solids and lines will become edges. selected you must select the Create layout curves checkbox again in the Sketch Options group of the Options panelArea of the user interface that enables you to modify functions specific to tools. in order to create layout curves on the drawing sheet. See Layout Curves.

• CurveIn 3D, any line in space. Fitter Options: If the Sketch plane passes through a Mesh objectObjectAnything recognizable by the tools. 3D objects include vertices, edges, faces, surfaces, solids, layouts, planes, axes, and origins. 2D objects include points and lines. created by importing an STL fileFile format native to the stereo lithography CAD software created by 3D Systems. You can export parts and assemblies (.stl).See Stereo lithography. lightweight (facets only). Mesh objects have the ability to snap to the facets., the system will fit curves through the facet points. Lines are displayed green and arcs are displayed blue. The following options apply to the system-generated curves.

  • Fit curves - Uncheck this option if you do not want the system to fit curves through the points.

  • Tolerance - Determines how many points will be found, which also determines how many curves will be created. The smaller the tolerance, the more points will be found and the curves will be generated.

  • Auto-merge - When checked On, the system will merge lines and arcs to form splines. Splines are displayed pink.

Examples

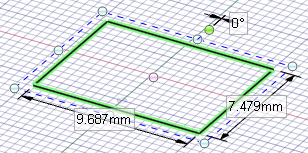

The Scale tool’s dimensions refer to the extents of the selected sketch object

Scaling in Section mode
