Unfolding Sheet Metal Component Examples

Using the Pull tool and annotation dimensions to change the height of a wall on the unfolded part (on top); the changes are reflected in the folded part (on the bottom).

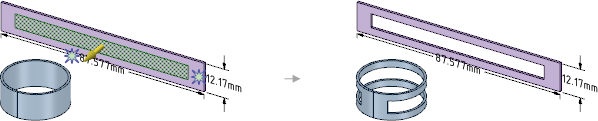

Using the Pull tool to put a hole in an unfolded cylinder also creates the hole in the folded part.

Creating a View of an Unfolded Part in a Drawing Sheet

  1. Unfold the sheet metal part in the drawing sheet.

    Move the mouse to preview the unfolded part.

  2. Click the drawing sheet to place a general view at that location.
