Overlapping faces

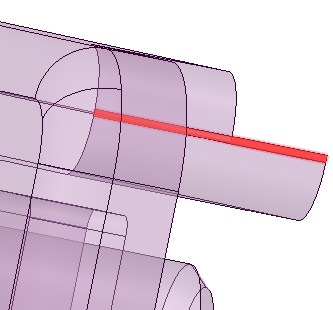

The Overlapping Faces tool detects faces that overlap. The example below shows an imported surface model. The lower face extends past the point of tangency with the upper face.





Overlapping faces

To find Overlapping faces

  1. Open the model you want to check.

  2. Click Overlap Faces in the Detect group of the Prepare tab.
  3. Any faces that overlap are highlighted.
