You can use the following sketch tools in 3D mode:
You can use the following tools from the Sketch group to change curves in 3D mode:
|
|
Create Rounded Corner can be used on curves when they are coplanar. |
|
|
Create Corner can also be used on coplanar curves. |
|
|
Trim Away can be used to trim curves in 3D mode. |
|
|
Split Line can be used to split curves in 3D mode. |
Using other tools to create and edit sketch curves in 3D mode
There are several methods that can create or edit sketch curves in 3D mode:
- Use the Pull tool to pull a point into a line or sweep a point along an edge.
- Use the Move tool to translate or rotate curves in 3D mode.
- Use the Face Curve tool to sketch on a face or surface.
- You can use the Extend tool on the Prepare tab with sketch curves in 3D mode.
- You can change the radius of a circle or an arc directly in 3D by selecting it with the Select tool.
Examples

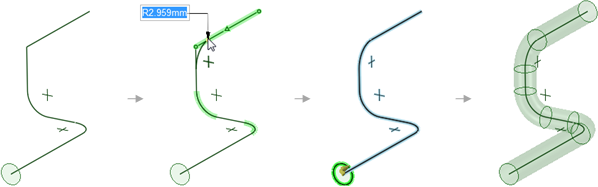

Sketching a path and sweeping to create a pipe
