Sketching sheet metal parts

The tools in the Sketch group on the Sheet Metal tab are a little different from normal sketch tools:

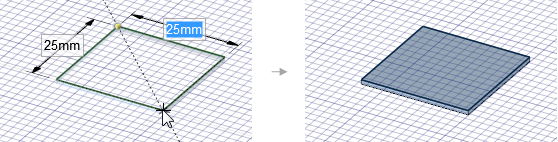

Rectangles, circles, polygons, and ellipses are automatically extruded to the thickness of a sheet metal wall as you sketch. See Sheet metal options to change the default wall thickness. Lines, splines, and arcs are extruded when they form a closed profile.

Sketching in empty space creates new walls.

A preview is displayed as you sketch that shows you the wall thickness for each sketch curve:

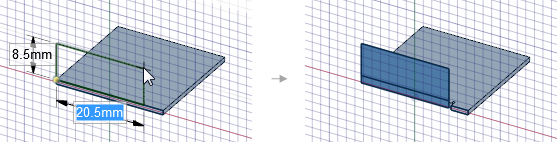

Sketching perpendicular to an existing wall creates a new wall with a bend between the walls with corner or rip reliefs where needed. The bend radius is created inside when the sketch is connected to the top edge and outside when the sketch is connected to the bottom edge:

Sketching on an existing wall creates sketch curves on the wall that you can use with the Bend and SplitUsing the Combine tool to split solids or surfaces. You select a solid or surface to use as a Cutting tool to cut the target. See Cutter object. tools.

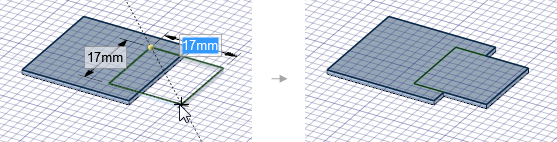

Sketching adjacent to or overlapping an existing wall adds material to the wall and may imprint the overlapping curves on the wall:

In addition, you can choose the ProfileLineA straight line, arc, or spline drawn in Sketch mode or on a layout plane. Lines have length but no area. When you pull a sketch into 3D with the PullTool used to distort or deform geometry. Use the Pull tool to offset, extrude, revolve, sweep, draft, and blend faces; or to round, chamfer, or extrude edges. When converting a sketch to 3D, pulling a line creates a surface and pulling a surface creates a solid. tool, lines become edges. in space; outline of an object; used to describe objects when sweeping or blending. option to create a wall that is perpendicular to the sketch plane as you sketch:

Sheet Metal sketch tools

Sheet Metal options

The following Sheet Metal sketch options allow you to choose between sketching a flat wall or a wall that is perpendicular to the sketch plane:

Common sketch options

The following options are available for every sketch tool:

• Cartesian dimensions: Select a point in a sketch and then click this option to see Cartesian dimensions from the point. Cartesian dimensions show you the X and Y distances from the point you select. If you don't have a point selected, it shows you the X and Y distances from the origin.

• Polar dimensions: Select a point in a sketch and then click this option to see Polar dimensions from the point. Polar dimensions show you an angle and a distance from the point you select. If you don't have a point selected, it shows you the angle and distance from the origin.

• SnapConstrain to objects, angular and linear increments, or grid points while you are sketching or editing solids. You can customize the snapping behavior in File>Options. Pressing Shift while dragging snaps the tool based on your snap settings. You can use the Snap to grid tool to constrain or lock all drawing to grid points only. to grid: Select this option turn snapping on or off while sketching. The cursor will snap to the minor grid spacing increment while you sketch. The defaults are 1mm for Metric and 0.125in for Imperial units. See Units options to change the minor grid spacing.

• Snap to angle: Select this option to turn angle snapping on or off while sketching. The cursor will snap to the angular snap increment while you sketch. The default is 15 degrees. See Snap options to change the angular increment used for snapping.

• Create layout curves: The sketch curves are created as layout curves. If you move the design to a drawing sheet, with Sketch modeModeThree ways of designing: Sketch, Cross-section, or 3D. You can switch between modes at any time. for drawing in two dimensions using the sketching tools on the sketch grid. A sketch is a collection of lines and other 2D objects on a sketch grid. Sketching creates regions that can be pulled into 3D. When you pull your sketch into 3D with the Pull tool, regions formed by intersecting lines will become solids and lines will become edges. selected you must select the Create layout curves checkbox again in the Sketch Options group of the Options panelArea of the user interface that enables you to modify functions specific to tools. in order to create layout curves on the drawing sheet. See Layout Curves.

• CurveIn 3D, any line in space. Fitter Options: If the Sketch plane passes through a Mesh objectObjectAnything recognizable by the tools. 3D objects include vertices, edges, faces, surfaces, solids, layouts, planes, axes, and origins. 2D objects include points and lines. created by importing an STL fileFile format native to the stereo lithography CAD software created by 3D Systems. You can export parts and assemblies (.stl).See Stereo lithography. lightweight (facets only). Mesh objects have the ability to snap to the facets., the system will fit curves through the facet points. Lines are displayed green and arcs are displayed blue. The following options apply to the system-generated curves.

  • Fit curves - Uncheck this option if you do not want the system to fit curves through the points.

  • Tolerance - Determines how many points will be found, which also determines how many curves will be created. The smaller the tolerance, the more points will be found and the curves will be generated.

  • Auto-merge - When checked On, the system will merge lines and arcs to form splines. Splines are displayed pink.
